Rockwool Weighing And Forming Conveyor

Name: Industrial Rockwool Production Line
Uploaded: 2026-03-21T05:58:17+08:00
Description: The rock wool weighing and forming conveyor is an automated piece of equipment in rock wool production lines that

Get Latest Price

Contact Now



Industrial Rockwool Production Line

Product Attributes Supply Ability & Additional Information

Product Attributes

Brand: Jiangsu Laitekai

Product Description

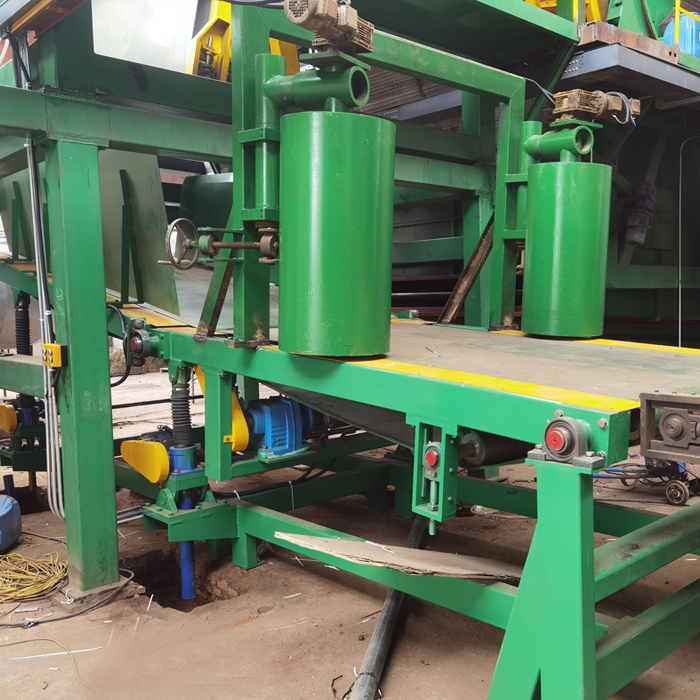

The rock wool weighing and forming conveyor is an automated piece of equipment in rock wool production lines that integrates weighing, shaping, and conveying functions. It is primarily used for precise weight inspection, preliminary shaping, and continuous conveying of formed rock wool boards, ensuring uniform product specifications and preparing them for subsequent curing and cutting processes.

Jiangsu Laite Kai Machinery Co., Ltd. specializes in manufacturing rock wool production line equipment, rock wool sandwich panel production line equipment, Glass wool production line equipment, automated control systems, and Environmental Protection Equipment.

This equipment is typically located after the pendulum-type fiber spreading machine and before the curing oven. The workflow is as follows:

Rock wool fibers are distributed by a pendulum spreader to form a uniform mat, which then enters the forming zone;

The conveyor uses high-precision sensors to monitor the mat’s weight per unit area in real time;

Based on preset parameters, it automatically adjusts the conveying speed or fiber density to achieve dynamic closed-loop weight control;

Simultaneously, it applies light pre-compression to the mat to complete preliminary shaping and prevent fiber loosening or shifting.

Core Functions and Technical Features:

High-precision weighing system: Utilizes imported load cells and intelligent controllers, with a measurement accuracy of ±0.5%, ensuring consistent bulk density across every batch.

Automatic feedback adjustment: Interfaces with the feeding system and the pendulum machine; when weight deviations are detected, it automatically adjusts the feed rate or fiber distribution frequency to achieve adaptive control during the production process.

‌Low-Disturbance Conveying Design‌: Utilizes flexible mesh belts or low-friction roller conveyors to prevent damage to unconsolidated felt and maintain the integrity of the fiber structure.

‌Modular Integrated Structure‌: Seamlessly interfaces with equipment such as pleating machines, presses, and curing ovens, supporting centralized PLC control of the entire production line to enhance automation levels.

‌Data Logging and Traceability‌: Features production data storage capabilities and records weight information for each panel, facilitating quality tracking and process optimization.
