Acoustic Insulation and Noise Reduction Rock Wool Board

Jiangsu Laite Kai Machinery Co., Ltd. is located in the Nanmo Development Zone of Haian City, eastern Jiangsu Province, overlooking the Yangtze River to the south. It serves as a key transportation hub for both water and land routes in central Jiangsu. The company occupies a total area of 18,000 square meters with fixed assets exceeding 28 million yuan. It specializes in manufacturing Rock wool Production Line equipment, glass wool production lines, automotive filter production lines, drying equipment, and battery separator production line equipment.

Jiangsu Laite Kai Machinery Co., Ltd. specializes in manufacturing rock wool production line equipment, rock wool sandwich panel production line equipment, glass wool production line equipment, automated control systems, and Environmental Protection Equipment.

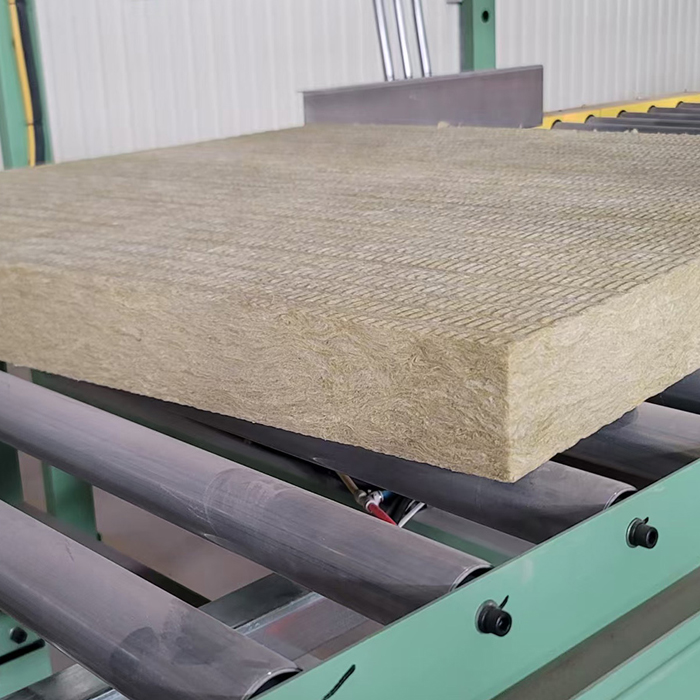

Rock wool boards are manufactured from natural inorganic minerals such as basalt, dolomite, and slag. These materials are melted at temperatures exceeding 1400°C, spun into fibers through centrifugal force, and blended with eco-friendly binders and water-repellent agents. The mixture undergoes pendulum laying, compression curing, and precision cutting to form board-shaped thermal insulation materials. Its core value lies in Class A non-combustible fire resistance + high-efficiency thermal insulation + stable mechanical properties. It also offers advantages such as sound absorption and noise reduction, moisture resistance and corrosion resistance, and environmental friendliness with no toxicity. As a core thermal insulation and fireproof material for construction, industrial, and cold chain applications, it meets both safety and energy-saving requirements.

Standard Rock Wool Board: Fibers run parallel to the board surface, suitable for conventional insulation applications (exterior walls, roofs, equipment insulation).

Rock Wool Strips/Bands: Cut and flipped from rock wool boards, with fibers perpendicular to the surface. Tensile strength ≥0.08MPa, ideal for curtain walls and load-bearing steel structures.

Composite Rock Wool Board: Features surface reinforcements like aluminum foil, fiberglass cloth, or steel mesh to enhance moisture resistance and impact resistance, suitable for cold storage and humid environments;​

Fire Barrier Strip Dedicated Board: Density ≥140kg/m³, fire resistance ≥1.5 hours, specifically designed for fire compartmentation in buildings to block fire spread.

Production Process and Quality Control​

Core Process: Raw material screening → High-temperature melting (1400°C) → Centrifugal fiber spinning → Additive incorporation (binder + water repellent) → Pendulum/3D fiber laying → Pressure curing → Cooling and cutting → Final inspection → Packaging;

Key Process Highlights:

Pendulum Method: Layer-by-layer layering creates diagonal fibers, enhancing compressive strength and interlayer bonding;

3D Method: Mechanically adjusts fiber orientation for three-dimensional distribution, doubling compressive strength and peel resistance;

Eco-friendly processing: Formaldehyde-free bonding agent used, organic content ≤4.0%, compliant with E0 environmental standards;

Quality inspection: Each batch tested for thermal conductivity, density, compressive strength, combustion performance, etc. Slag ball content (>0.25mm) ≤6.0%, average fiber diameter ≤7μm.
